Re: [fluid-dev] problems with fluidsynth 1.1.6 on a raspberry pi

From: Jan Newmarch
Subject: Re: [fluid-dev] problems with fluidsynth 1.1.6 on a raspberry pi
Date: Sun, 18 Nov 2012 21:07:19 +1100

Thanks to Christian and Aere. Here are some more results on a file nightsin.kar of various choices using pidstat:

Version flags sound font cpu % memory % comments
1.1.5 none FluidR3_GM 75% 43% unlistenable
1.1.5 -z 4096 FluidR3_GM 70% 43% unlistenable
1.1.5 -z 4096 GeneralUser 76% 20% unlistenable
1.1.6 none FluidR3_GM 80% 40% still distorting
1.1.6 -z 4096 FluidR3_GM 75% 40% distorts when usage > 90%
1.1.6 -z 4096 GeneralUser 65% none shown distorts when usage > 90%

I haven't tried Aere's suggestions yet. Overall, 1.1.6 sounded better than 1.1.5, but that may be the result of the options compiled in.

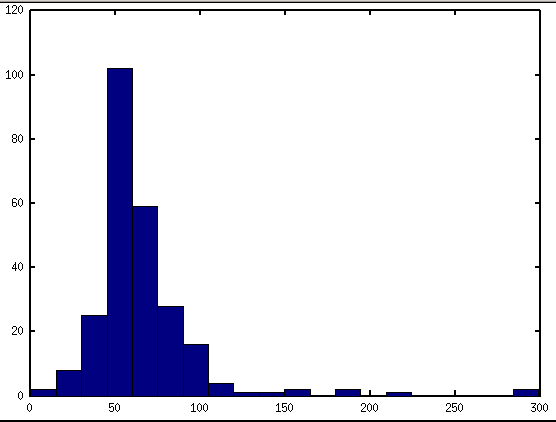

Using pidstat with a resolution of 1 second I got the following histogram (using octave) of the CPU usage for the last case, 1.1.6 with GeneralUser soundfont. I know CPU usage of 300% is probably a bit exaggerated but the file didn't sound too good at that point! Are there standard MIDI test files for isolating what factors cause what effects?



On Sat, 2012-11-17 at 08:09 -0600, S. Christian Collins wrote:
Try GeneralUser GS FluidSynth version from this site. It is much smaller than FluidR3, so it should hopefully use less CPU.

On 11/17/2012 04:25 AM, Jan Newmarch wrote:

Recently there was a thread about 1.1.5 on an RPi. I'm picking that up
for 1.1.6. I have a Model B RPi with 512M RAM. I have the Raspbian hard
float image installed rather than the Debian soft float (which behaves
worse). I have applied the security fixes suggested by Aere Greenway.
I'm running it with period set by -z 4096 as suggested by David
Henningsson. I'm observing CPU usage by running top in a separate

fluidsynth -a alsa -l -z 4096 /usr/share/sounds/sf2/FluidR3_GM.sf2 \

Some simple MIDI files play okay. Others hit CPU usage between 40-99%,
varying throughout the song. At 99% CPU the sound is very broken up, too
bad to be really playable.

It has been suggested that smaller sound fonts will help. What smaller
sound fonts are there?

I can do more experiments if desired.
